| Technical Features | |
| Gauge | Standard gauge |
| No. of Wheels Wheel | 8 wheeler |
| Bogie | Bogie Type |
| Wheel Dia | 950 mm |
| Overall all length of Vehicle | 22000 mm |
| Width of vehicle | 3200 mm |
| Height of vehicle | 4000 mm |
| Axle Load | 17 Ton |
| Engine | 900 Hp (450*2) |
| Transmission | Avtec transmission CRT-5633 |
| Transmission Type | Hydrodynamic |
| Towing Capacity | 65 tons |
| Loading Capacity | 15.5 Ton |
| Max Speed | 110 Kmph |
| Features for Track Maintenance | |

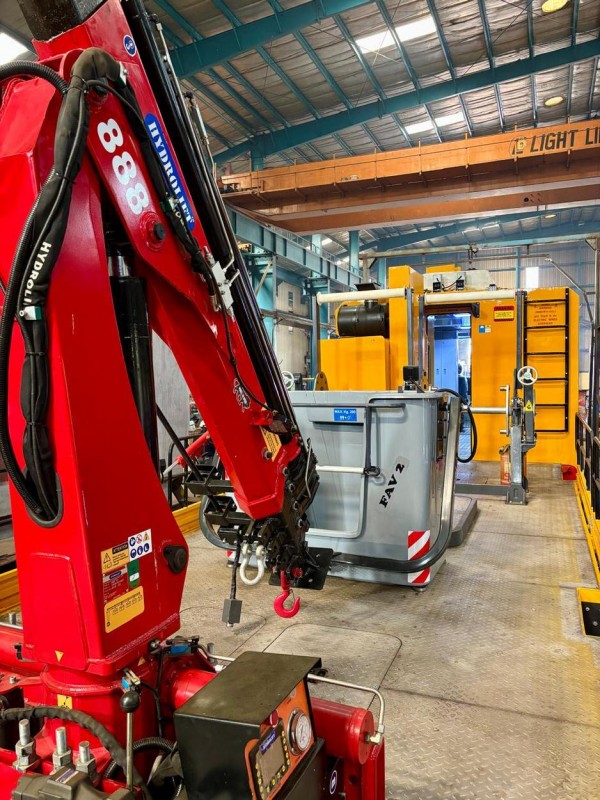

| Crane | Available, 1 nos (2T at 4m) |
| Elevating Platform | Available |
| Manbasket | Available |

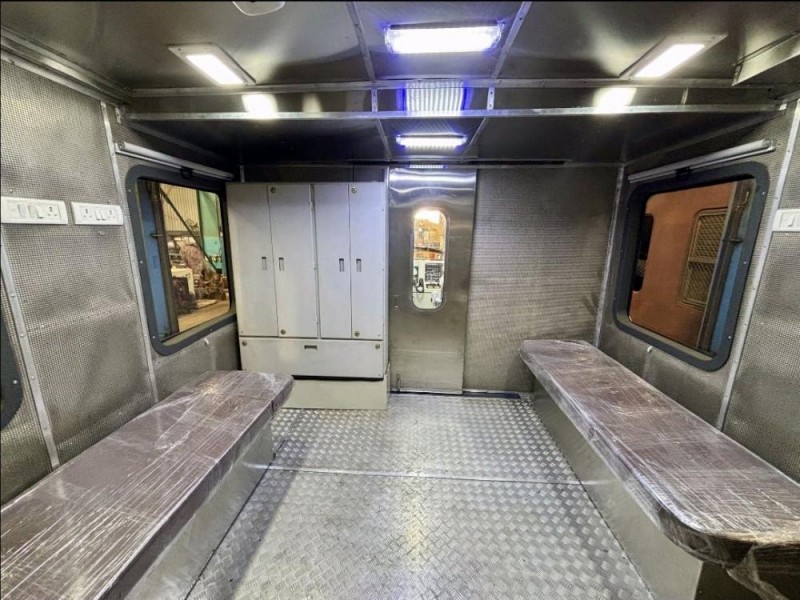

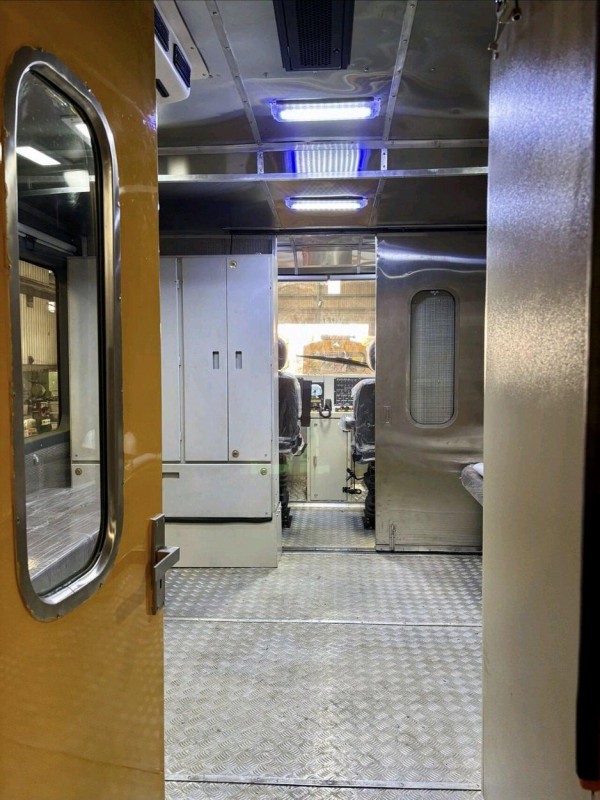

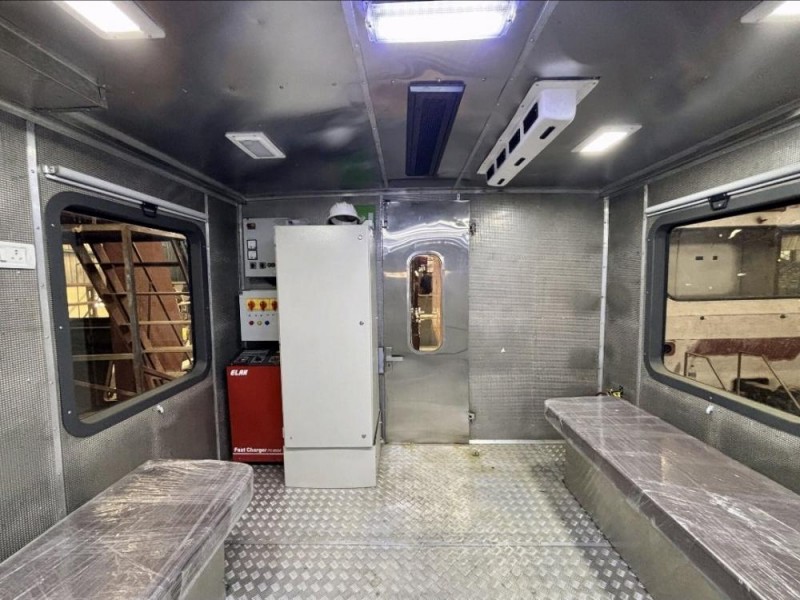

| Crew Amenties | |
| Staff Room AC | Available |

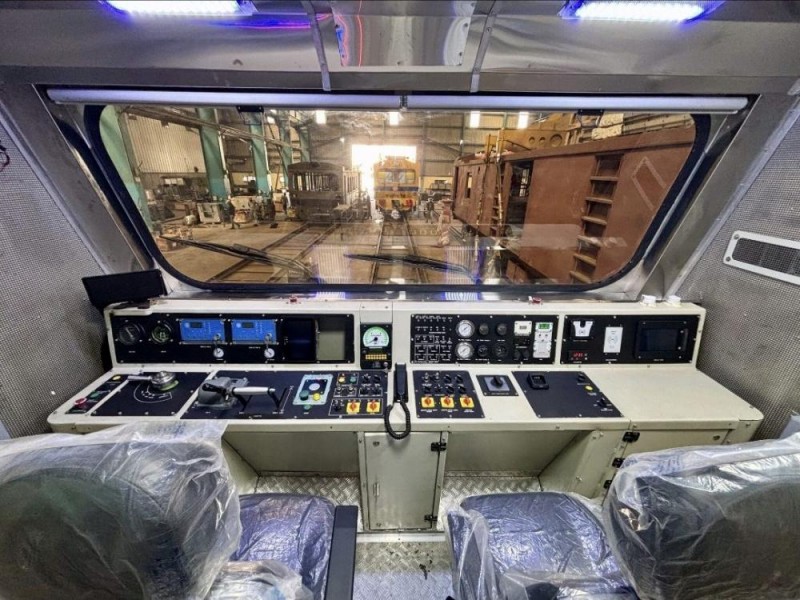

| Driver CAB AC | Available |
| Sleeper/ Seating Chair | Seating chair |
Available in different Gauges / Speeds / Vehicle Configuration.
Build to order custom machines to suit the client / job site' s specific requirement.
